4-Stroke Petrol Motor Tillers / Hoes |
|
|
|
Grillo GZ1
GZ1, GZ2 and GZ3 are compact rotary tillers, ideal for milling easily even where there is not much space.
The rotavator for both the GZ1 and GZ2 is of 57cm width (including tree-saver disks), while the GZ3 has a maximum width of 80cm (including tree-saver disks)
At standstill, the tiller blades are free to turn, a real convenience: where receding movement is easy and effortless.
The rotavator for both the GZ1 and GZ2 is of 57cm width (including tree-saver disks), while the GZ3 has a maximum width of 80cm (including tree-saver disks)
At standstill, the tiller blades are free to turn, a real convenience: where receding movement is easy and effortless.
|
Brand: Grillo
Model: GZ1 Engine model: Briggs & Stratton 575 EX Engine type: 4-Stroke OHV Power: 140cc / 3.5hp Speeds: 1 Forward Working width: 57cm Working depth: 28cm Transmission: Worm gear in oil bath Clutch: Dock-drive in differential Handlebar: Adjustable in height & sideways Transport wheel: Yes, front Net weight: 35kg |
Grillo GZ2
|
Brand: Grillo
Model: GZ2 Engine model: Briggs & Stratton 575 EX Engine type: 4-Stroke OHV Power: 140cc / 3.5hp Speeds: 1 Forward + 1 Reverse Working width: 57cm Working depth: 28cm Transmission: Worm gear in oil bath Clutch: Dock-drive in differential Handlebar: Adjustable in height & sideways Transport wheel: Yes, front Net weight: 41kg |
Grillo GZ3
|
Brand: Grillo
Model: GZ3 Engine model: Honda GCV170 Engine type: 4-Stroke OHV Power: 170cc / 5.0hp Speeds: 1 Forward + 1 Reverse Working width: 80cm Working depth: 28cm Transmission: Worm gear in oil bath Clutch: Dock-drive in differential Handlebar: Adjustable in height & sideways Transport wheel: Yes, front Net weight: 45kg |
Grillo GZ Series - Video at work:
Grillo GZ Series optional attachment:
|

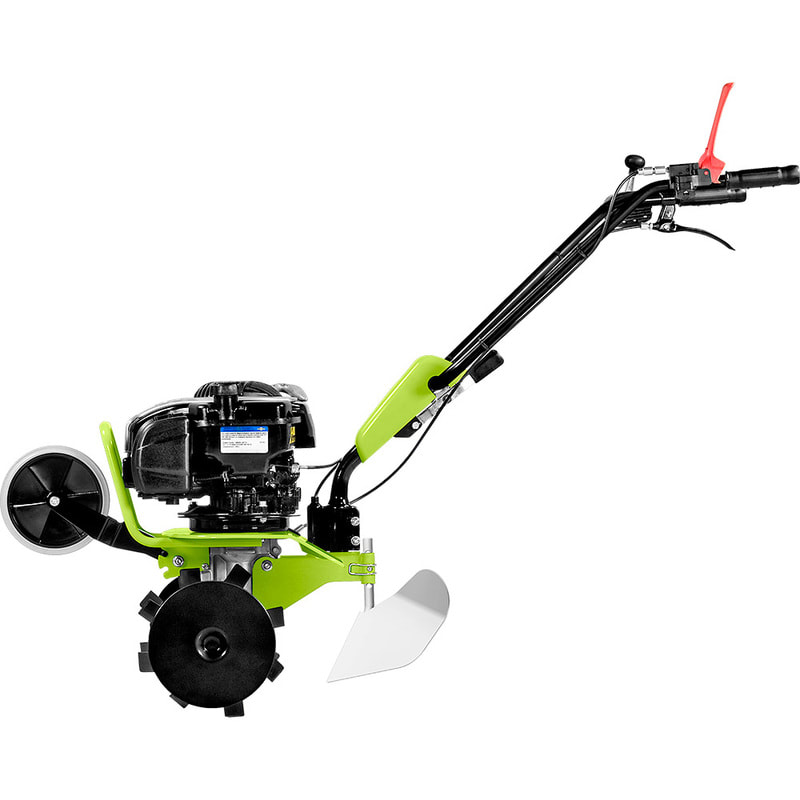

Ridging Plough
|

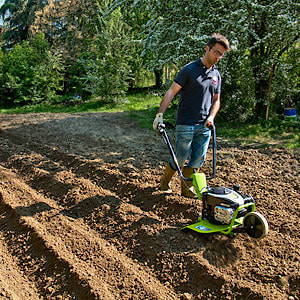

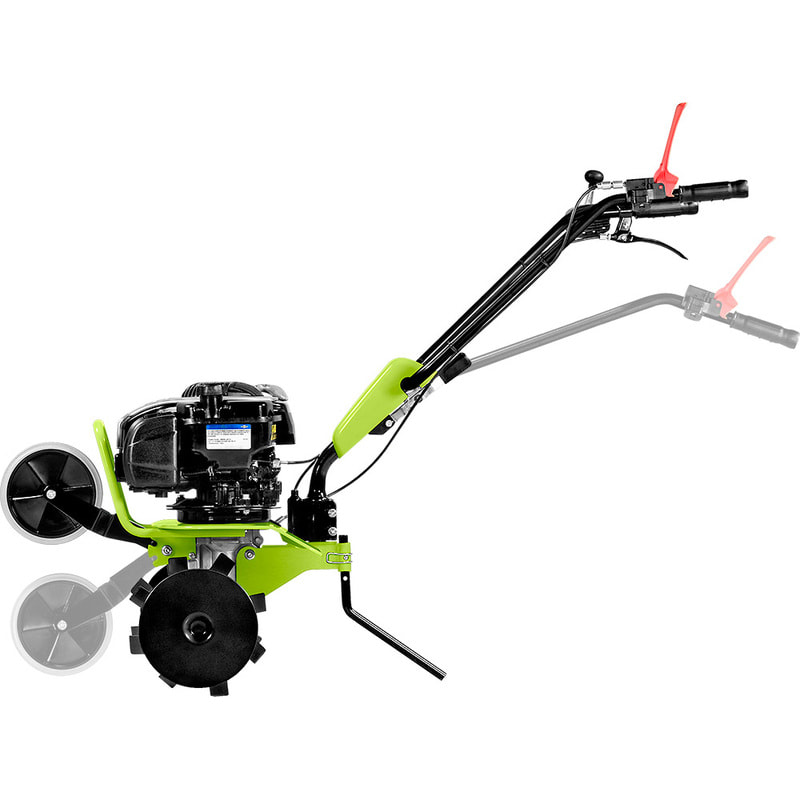

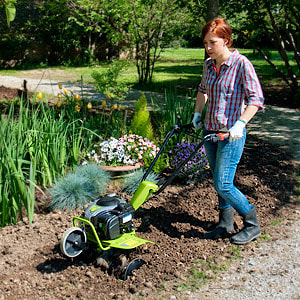

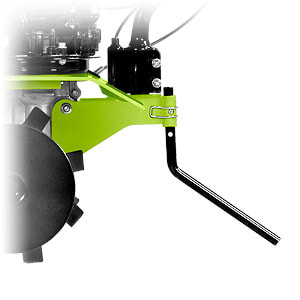

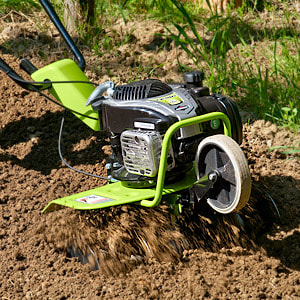

More photos of the GZ Series tillers:
|
|
|
|
|
|
|
|
Eurosystems La Zappa
It shows the same characteristics and is as adaptable as the version with electric engine, but, thanks to its 4 strokes engine, it provides greater power and can be transported and used in any situation.
|
Brand: EurosystemsModel: La Zappa
Engine Model: Loncin 123cc Engine Type: 4 Stroke OHV Power: 140cc / 4.0hp Speeds: 1 Forward Working width: 36cm Working depth: 25cm Transmission: Worm screw in oil bath Clutch: V-belt Handlebar: Adjustable in height Transport wheel: Yes, front Weight: 25kg |
Eurosystems La Zappa optional attachments:
|
Scarifier
|
De-thatcher
|
Rotavator 16cm
|
Ridging Plough
|
Eurosystems Z2 / Z2RM
This model is innovative, ergonomic, sturdy and shows a nice shape; moreover it can be easily used in the smallest areas thanks to its good balance and reverse gear.
|
Brand: Eurosystems
Model: Z2 / Z2RM * Engine Model: Loncin 123cc Engine Type: 4-Stroke OHV Power: 140cc / 4.0hp Speeds: 1 Forward (+ 1 Reverse - RM Series) * Working width: 40cm Working depth: 25cm Transmission: Worm screw in oil bath Clutch: V-belt Handlebar: Adjustable in height Transport wheel: Yes, rear Weight: 32kg * Optional RM Series with reverse speed |
Eurosystems Z2 optional attachments:
|
Rotavator 16cm
|
De-thatcher
|
Ridging Plough
|
Scarifier
|
Eurosystems Euro 3 / Euro 3RM
In its several versions, this model has been working for nearly 30 years in all types of soil in small and medium sized orchards, vineyards, vegetable gardens and garde
|
Brand: Eurosystems
Model: Euro 3 / Euro 3RM * Engine Model: GGP 160T Engine Type: 4-Stroke OHV Power: 160cc / 6.0hp Speeds: 1 Forward (+ 1 Reverse - RM Series) * Working width: 50cm Working depth: 32cm Transmission: Worm screw in oil bath Clutch: V-belt Handlebar: Adjustable in height & sideways Transport wheel: Yes, front Weight: 45kg * Optional RM Series with reverse speed |
Eurosystems Euro 3 optional attachments:
|
Adjustable Spur Kit
|
De-thatcher
|
Ridging Plough
|
Wide Tines to 75cm
|
Eurosystems Z3 / Z3RM
As well as the outstanding features of Z2 model, Z3 shows a wider, sturdier rotavator. Moreover the handlebar is adjustable even sideways.
|
Brand: Eurosystems
Model: Z3 / Z3 RM * Engine Model: GGP 160T Engine Type: 4-Stroke OHV Power: 160cc / 6.0hp Speeds: 1 Forward (+ 1 Reverse - RM Series) * Working width: 50cm Working depth: 32cm Transmission: Worm screw in oil bath Clutch: V-belt Handlebar: Adjustable in height & sideways Transport wheel: Yes, rear Weight: 44kg * Optional RM Series with reverse speed |
Eurosystems Z3 optional attachments:
|
De-thatcher
|
Ridging Plough
|
Wide Tines to 75 cm
|
Eurosystems Euro 5 EVO ONE
Extra compact version of the Euro 5 Evo model. Model ONE is agile, manageable but also powerful and is equipped with a low displacement horizontal shaft and a small rotavator, ideal features for working quickly on medium-compact surfaces. The balanced power-to-weight ratio guarantees optimal penetration even on hard soils, Furthermore, the considerable weight reduction allow easy transport and an exceptional manoeuvrability.
|
Brand: Eurosystems
Model: Euro 5 EVO ONE Engine Model: Loncin E80 OHV Engine Type: 4-Stroke OHV Power: 80cc / 2.4hp Speeds: 1 Forward Working width: 46cm Working depth: 32cm Transmission: Worm screw in oil bath Clutch: V-belt Handlebar: Adjustable in height Transport wheel: Yes, front Weight: 38kg |
Eurosystems Euro 5 EVO ONE optional attachments:
|
De-thatcher
|
Ridging Plough
|
Adjustable Spur Kit
|
Eurosystems - Euro 5 / Euro 5RM
The sturdiness of the mechanical parts, the power and flexibility of the engine allow a semi-professional use of the machine in medium-large sized areas, even in never tilled soils.
|
|
Brand: Eurosystems
Model: Euro 5 / Euro 5RM * Engine Model: GGP TM60 Engine Type: 4-Stroke OHV Power: 182cc / 6.5hp Speeds: 1 Forward (+ 1 Reverse) * Working width: 50cm / 75cm Working depth: 32cm Transmission: Worm screw in oil bath Clutch: V-belt Handlebar: Adjustable in height Transport wheel: Yes, front Weight: 50kg * Optional RM Series with reverse speed |
Eurosystems Euro 5 optional attachments:
|
De-thatcher
|
Ridging Plough
|
Adjustable Spur Kit
|
Eurosystems Euro 5 Evo
Euro 5 Evo in single speed or including reverse version; Compared to the more performing version (EVO2+1), this tiller has a simpler transmission but manages to maintain its' versatility and robustness thanks to accurate internal quality controls. Ideal for the horticulturist who needs to carry out his work quickly and effortlessly even when the soil is compact and not tilled, Euro 5 EVO breaks the surface crust and crushes the earth below, increasing its ventilation and preparing it for sowing.
|
Brand: Eurosystems
Model: Euro 5 EVO Engine Model: Loncin E182 OHV Engine Type: 4-Stroke OHV Power: 18cc / 6.5hp Speeds: 1 Forward + 1 Reverse Working width: 75cm Working depth: 32cm Transmission: Worm screw in oil bath Clutch: V-belt Handlebar: Adjustable in height Transport wheel: Yes, front Weight: 55kg |
Eurosystems Euro 5 EVO 2+1 optional attachments:
|
De-thatcher
|
Ridging Plough
|
Adjustable Spur Kit
|
More photos of the Euro 5 EVO 2+1:
|

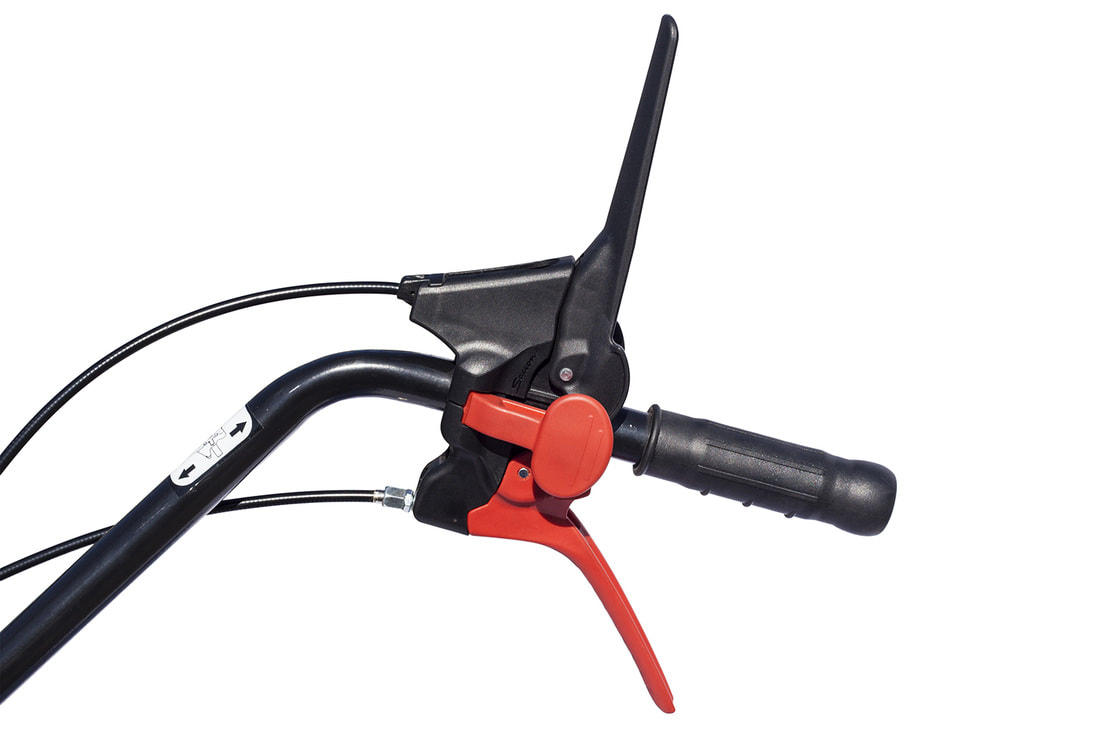

New Ergonomic Safety Handle
|

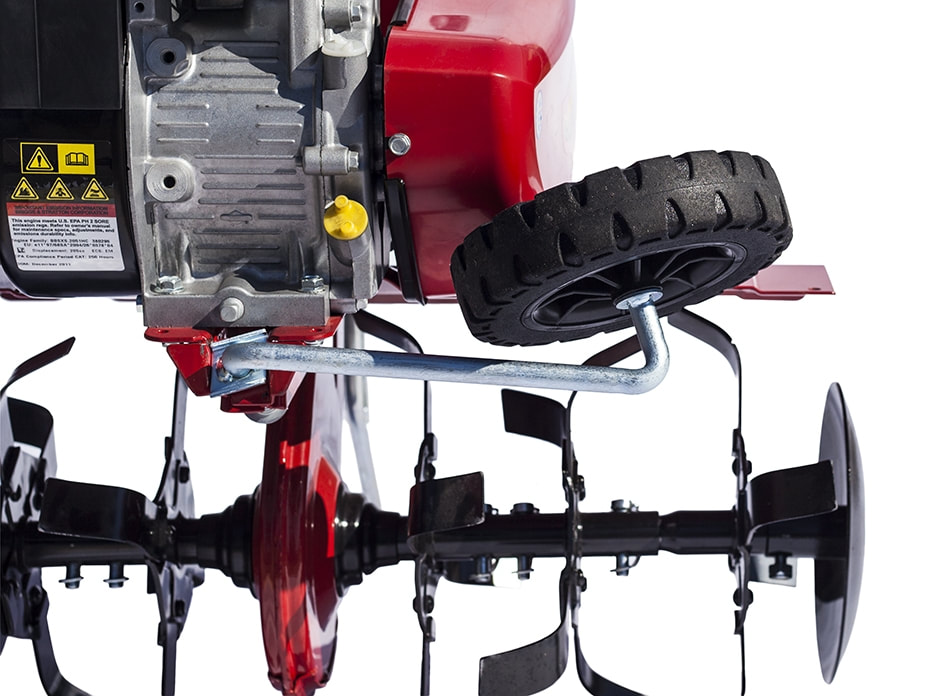

Quick Disengagement Wheel
|

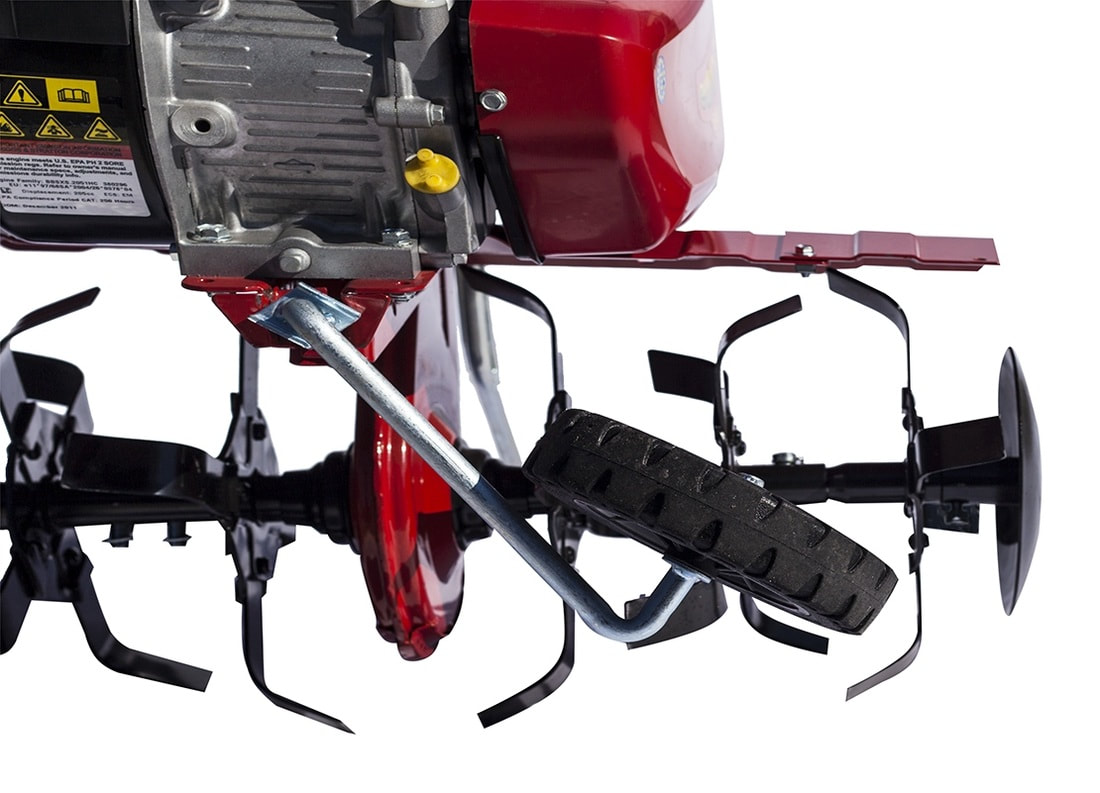

Quick Disengagement Wheel
|
Eurosystems Z8
This new tiller's main characteristics are shown by its sturdiness and functional capacity. It is available equipped with diesel and gasoline engines, it is excellent for tilling operations on any ground. Z8 unit can be assembled with some accessories like wide tines, transfer wheels and ridging plough.
|
Brand: Eurosystems
Model: Z8 Engine Model: Honda GX160 Engine Type: 4-Stroke OHV Power: 160cc / 5.5hp Speeds: (Low) 2 Forward + 1 Reverse (High) 2 Forward + 1 Reverse Working width: 82cm Rotavator diameter: 32cm Transmission: Worm screw in oil bath Gear Disengagement: By lever on handlebar Clutch: V-belt Handlebar: Adjustable in height & sideways Transport wheel: Yes, front Weight: 88kg |
Eurosystems Z8 Optional Attachments:
|
Firm axles and wheels
|
Adjustable Ridging Plough
|
Transport Wheels to be assembled on tree saver discs
|
Wide Tines to 105cm
|
Val Garden MZ501 HX1
|
Brand: Val Garden
Model: MZ501 HX1 Engine Model: Honda GP160 Engine Type: 4-Stroke OHV Power: 163cc / 5.5hp Speeds: 2 Forward + 1 Reverse Working width: 90cm including tree-saver disks Rotavator diameter: 34cm Transmission: Gears in lubricating oil Gear Disengagement: By lever or handlebar Clutch: Mechanical clutch Handlebar: Adjustable in height & sideways Transport wheel: Weight: 70kg |
Val Garden MZ501 optional attachments:
|

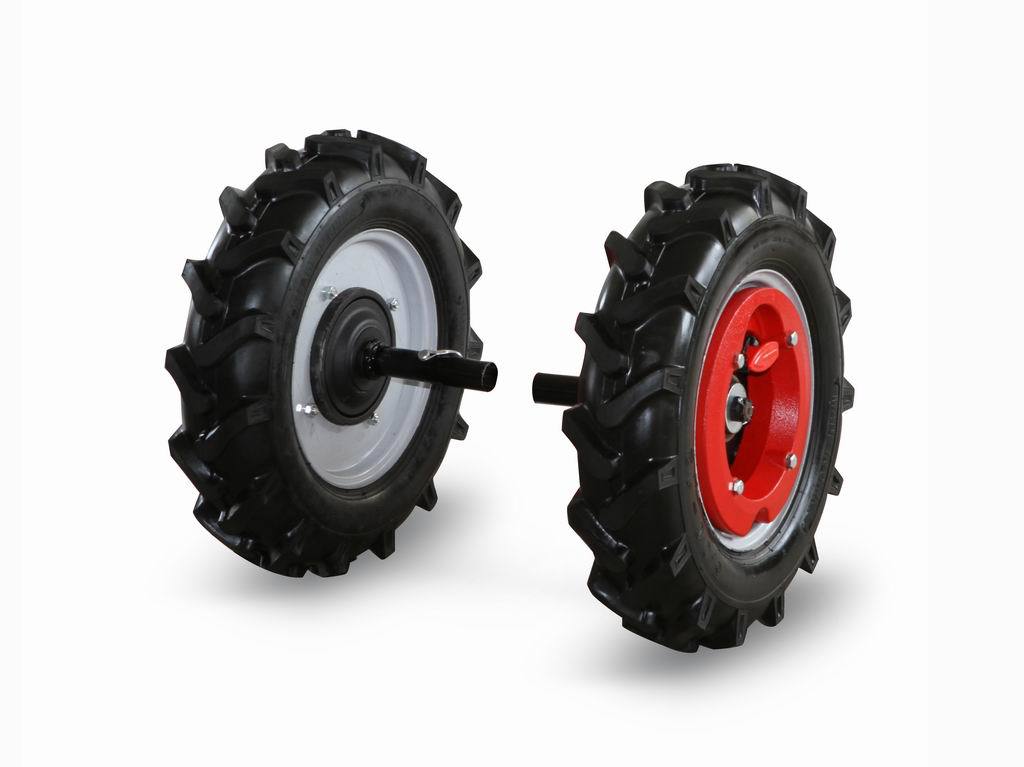

Firm axles & wheels
|
Adjustable ridging plough
|
Eurosystems Euro 102 H - With Honda Engine
Designed for the most demanding farmer and produced in 4-stroke petrol and diesel models thanks to the 2 PTOs, this model can be used with driving wheel trailers, for irrigation, with spray pumps and other accessories.
|
Brand:
Model: Engine Model: Engine Type: Power: Speeds: Working width: Rotavator diameter: Transmission: Gear Disengagement: Clutch: Handlebar: Transport wheel: Weight: Origin: Engine Origin: Warranty: |
Eurosystems
Euro 102 Honda GX160 4-Stroke OHV 160 cc / 6 Hp 3 Forward + 1 Reverse 95 cm Adjustable to 65 cm 32 cm Gears in lubricating oil By lever on handlebars Dry Conic Clutch Adjustable in height & sideways No 100 Kg Italy & Germany Japan 24 months |
Eurosystems Euro 102 Optional Attachments:
|
Firm Axles & Wheels
|
Adjustable Ridging Plough
|
Transport Wheels to be assembled on tree-saver discs
|
Wide Tines to 125cm
|
