Small Submersible Pumps with Incorporated Float Switch

---

Wortex  SPC 250

​Submersible plastic pump suitable for suction of clean water. Used for draining flooded rooms or tanks, draining clean water, or draining pool towels.

• Brand:  Wortex
• Model:  SPC 250
• Maximum head:  5.5mt
• Maximum flow:  125 lt/min
• Motor Power:  0.33 Hp / 0.25 kW
• Voltage:  220 to 240 V
• Outlet Ø:  1¼"
• Lowest water suction:  20 mm
​• Solids Passageway:  4 mm
​• Body & Handle:  Moplen
• Impeller:  Moplen
• Motor Casing:  Stainless Steel
• Shaft:  Stainless Steel
​• Mechanical Seal:  No
• Oil Seal:  Double
• Cable:  10 mt
• Origin:  Italy
• Warranty:  24 months, parts & labor

---

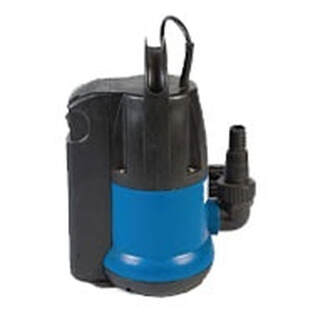

Wortex JD 550-G

Hand-carry submersible automatic water pumps. Able to drain infiltrating water, cellars or reservoirs, clean or slightly dirty water and for garden irrigation.

OPERATING CONDITIONS:
Liquid temperature up to 35°C (for home use    according to EN 60335-2-41)
Temperature max. liquid:  35°C (for other uses)
Maximum immersion depth:  5 mt.
Grain size inlet Ø:  5 mm
Min. suction level:  15 mm

MOTOR
Built-in overload motor protector with automatic reset
Permanent split capacitor
Insulation Class F
Protection IP 68

MATERIALS
Handle:  Moplen
Pump body : Moplen
Impeller:  Noryl
Motor casing:  Stainless Steel AISI 304
Shaft with rotor:  Stainless Steel AISI 304
Double oil seal
Mechanical seal

• Brand:  Wortex
• Model:  JD 550-G
• Maximum head:  8mt
• Maximum flow:  175 lt/min
• Motor Power:  0.75 Hp / 0.55 kW
• Voltage:  220 to 240 V
• Outlet Ø:  1¼"
• Lowest water suction:  15 mm
​• Solids Passageway:  5 mm
​• Body & Handle:  Moplen
• Impeller:  Moplen
• Motor Casing:  Stainless Steel AISI304
• Shaft:  Stainless Steel AISI304
• Mechanical Seal:  Yes
• Cable:  10 mt
• Origin:  Italy
• Warranty:  24 months, parts & labor
