Surface Pumps
Wortex PM50
The close-coupled pumps with peripheral impeller series PM have been designed to pump clean liquids, without abrasives and suspended solids, non-explosive or aggressive for the pump’s materials.
|
• Brand: Wortex
• Model: PM 50 • Motor Power: 0.5 Hp / 0.37 kW • Max. Suction Depth: 8mt • Max. Liquid °C: 35°C • Max. Ambient °C: 40°C • Maximum Head: 38 mt • Maximum Flow: 35 lt/min • Pump body: Cast Iron • Motor bracket: Cast Iron • Impeller: Brass • Pump shaft: Stainless Steel AISI 304 • Mechanical seal: Ceramic / Carbon / NBR • Pump Connections: 1" * 1" • Origin: Italy • Warranty: 24 months, parts & labor |
Sealand Ondina 50
The close-coupled pumps with peripheral impeller series ONDINA have been designed to pump clean liquids, without abrasives and suspended solids, non-explosive or aggressive for the pump’s materials.
The difference between the Basic 50 and the Ondina 50, is that the ondina contains 2 stainless steel plates inside the cast iron housing, at the front and rear of the brass impeller. This new ABS design (Anti-Blocking System) will ensure that the pump keeps working smooth without rust blocking the impeller from rotation
The difference between the Basic 50 and the Ondina 50, is that the ondina contains 2 stainless steel plates inside the cast iron housing, at the front and rear of the brass impeller. This new ABS design (Anti-Blocking System) will ensure that the pump keeps working smooth without rust blocking the impeller from rotation
|
• Brand: Sealand
• Model: ONDINA 50 • Motor Power: 0.5 Hp / 0.37 kW • Max. Suction Depth: 8mt • Max. Liquid °C: 35°C • Max. Ambient °C: 40°C • Maximum Head: 35 mt • Maximum Flow: 40 lt/min • Pump body: Cast Iron • Motor bracket: Cast Iron • Impeller: Brass • With ANTI-JAM, stainless steel plates system • Pump shaft: Stainless Steel AISI 420F • Mechanical seal: Ceramic / Carbon / NBR • Pump Connections: 1" * 1" • Origin: Italy • Warranty: 24 months, parts & labor |
Wortex JX80
The perfect water pump for achieving mains pressure from a static water supply such as a tank, bowser or rainwater harvesting tank. The Wortex JX80 is typically used to transfer water and booster mains water pressure and flow with our pressure control switch, ideal for connecting a water tank to temporary welfare facilities and cabins or drawing water from a rainwater harvesting system. Also used for general irrigation and water misting systems.
|
• Brand: Wortex
• Model: JX 80 • Motor Power: 0.8 Hp / 0.6 kW • Max. Suction Depth: 8mt • Max Liquid °C: 35°C • Max Ambient °C: 40°C • Maximum Head: 38 mt • Maximum Flow: 50 lt/min • Pump body: Stainless Steel AISI 304 • Motor bracket: Aluminium • Impeller: Noryl • Pump Flange: Stainless Steel AISI 304 • Pump shaft: Stainless Steel AISI 304 • Mechanical seal: Ceramic / Carbon / NBR • Pump Connections: 1" * 1" • Origin: Italy • Warranty: 24 months, parts & labor |
Speroni CAM80
Selfpriming jet water pumps with a very high hydraulic performance and a considerable pressure capacity. Able to pump up to mt. 8 depth and work perfectly even in sodawater. Suitable for drinkable water, water lifting and distribution in domestic fittings by small and medium sized tanks.
|
• Brand: Speroni
• Model: CAM 80 • Motor Power: 0.8 Hp / 0.6 kW • Max. Suction Depth: 8mt • Max Liquid °C: 35°C • Max Ambient °C: 40°C • Maximum Head: 38 mt • Maximum Flow: 50 lt/min • Pump body: Stainless Steel AISI 304 • Motor bracket: Aluminium • Impeller: Noryl • Pump shaft: Stainless Steel AISI 304 • Mechanical seal: Ceramic / Carbon / NBR • Pump Connections: 1" * 1" • Origin: Italy • Warranty: 24 months, parts & labor |
Sealand K50
The close-coupled centrifugal electric pumps with one impeller (series K) have been designed to pump clear liquids, without abrasives and suspended solids, non-explosive or aggressive for the pump’s materials. The main feature of these types of pumps are the balanced pressure / volume ratio and mostly famous for their quiet operation.
|
• Brand: Sealand
• Model: K 50 • Motor Power: 0.5 Hp / 0.37 kW • Max. Suction Depth: 8mt • Max Liquid °C: 35°C • Max Ambient °C: 40°C • Maximum Head: 20 mt • Maximum Flow: 100 lt/min • Pump body: Cast Iron • Motor bracket: Cast Iron • Impeller: Techno Polymer • Pump shaft: Stainless Steel AISI 420F • Mechanical seal: Ceramic / Carbon / NBR • Pump Connections: 1" * 1" • Origin: Italy • Warranty: 24 months, parts & labor |
Sealand K50MB
The close-coupled centrifugal electric pumps with one impeller (series K) have been designed to pump clear liquids, without abrasives and suspended solids, non-explosive or aggressive for the pump’s materials
|
• Brand: Sealand
• Model: K 50 MB • Motor Power: 0.5 Hp / 0.37 kW • Max. Suction Depth: 8mt • Max Liquid °C: 35°C • Max Ambient °C: 40°C • Maximum Head: 20 mt • Maximum Flow: 100 lt/min • Pump body: Cast Iron • Motor bracket: Cast Iron • Impeller: Brass • Pump shaft: Stainless Steel AISI 420F • Mechanical seal: Ceramic / Carbon / NBR • Pump Connections: 1" * 1" • Origin: Italy • Warranty: 24 months, parts & labor |
Wortex C150
Single-impeller centrifugal electric pumps suitable for covering requests for small, medium and large flow rates. Use in domestic agricultural and industrial systems, automatic distribution of water by means of small tanks (autoclave), for sprinkler and flow irrigation in the garden and agriculture, to increase, by derivation, the network pressure of the aqueducts.
|
• Brand: Wortex
• Model: C 150 • Motor Power: 1.0 Hp / 0.75 kW • Max. Suction Depth: 8mt • Max Liquid °C: 35°C • Max Ambient °C: 40°C • Maximum Head: 29 mt • Maximum Flow: 125 Lt/min • Pump body: Cast Iron • Motor bracket: Cast Iron • Impeller: Stainless Steel AISI 304 • Pump shaft: Stainless Steel AISI 304 • Mechanical seal: Ceramic / Carbon / NBR • Pump Connections: 1" * 1" • Origin: Italy • Warranty: 24 months, parts & labor |
Wortex C250
Single-impeller centrifugal electric pumps suitable for covering requests for small, medium and large flow rates. Use in domestic agricultural and industrial systems, automatic distribution of water by means of small tanks (autoclave), for sprinkler and flow irrigation in the garden and agriculture, to increase, by derivation, the network pressure of the aqueducts.
|
• Brand: Wortex
• Model: C 250 • Supply Voltage: 220 to 240V • Motor Power: 2.0 Hp / 1.5 kW • Max. Suction Depth: 8mt • Max Liquid °C: 35°C • Max Ambient °C: 40°C • Maximum Head: 43mt • Maximum Flow:125 Lt/min • Pump body: Cast Iron • Motor bracket: Cast Iron • Impeller: Stainless Steel AISI 304 • Pump shaft: Stainless Steel AISI 304 • Mechanical seal: Ceramic / Carbon / NBR • Pump Connections: 1" * 1" • Origin: Italy • Warranty: 24 months, parts & labor |

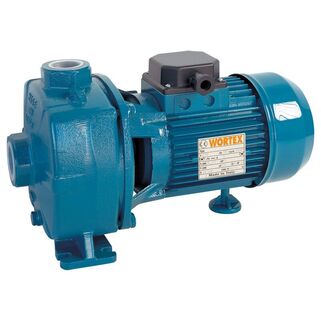

Wortex CNB 150/B
|
• Brand: Wortex
• Model: CNB 150/B • Supply Voltage: 220 to 240V • Motor Power: 1.5 Hp / 1.1 kW • Max. Suction Depth: 7mt • Max Liquid °C: 35°C • Max Ambient °C: 40°C • Maximum Head: 39.5 mt • Maximum Flow: 175 lt/min • Pump body: Cast Iron • Motor bracket: Cast Iron • Impeller: Noryl • Pump shaft: Stainless Steel • Mechanical seal: Ceramic / Graphite / NBR • Pump Connections: 1½" * 1¼" • Origin: Italy • Warranty: 24 months, parts & labor |
|
win impeller centrifugal water pumps for suction up to 7 mt. Suitable for civil and industrial purposes and to drain clean water and non-aggressive liquid. Particularly suitable for high pressure systems.
OPERATING CONDITIONS Liquid temperature up to 35°C (for home use according to EN 60335-2-41) Temperature max. liquid: 35°C (for other uses) Ambient temperature up to 40°C Total suction lift up to 7 mt Continuous duty |
MOTOR
Two-Pole induction motor (n = 2850 min-1) Insulation Class F Protection IP 55 MATERIALS Pump body: Cast Iron Motor Support: Cast Iron Impeller: Noryl Diffuser: Noryl Shaft with rotor: Stainless Steel Mechanical seal: Ceramic/Graphite/NBR |

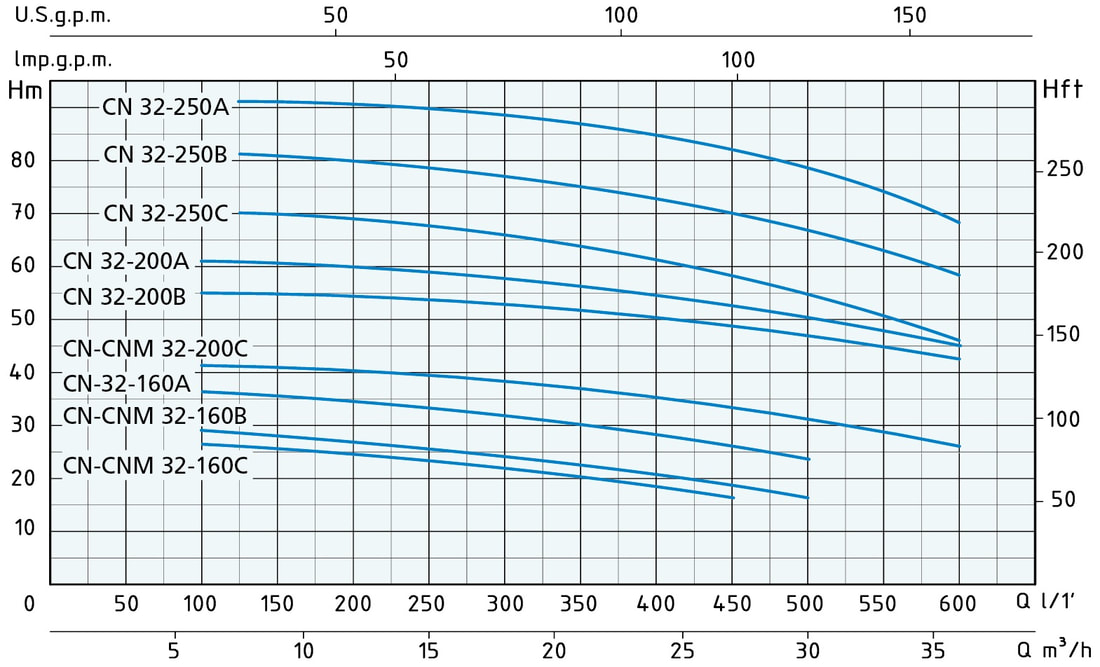

Wortex CN32
Centrifugal, monobloc and single-impeller electric pumps with pump body, connected to the motor by means of a support. With flanged suction and delivery ports (PN 10) and counterflanges of the threaded type. These machines are suitable for pumping clean water and other chemically and mechanically non-aggressive liquids; the possibility of installation in any position, with the exception of the one involving the suction mouth facing upwards. Suitable for the most varied needs in the civil, agricultural, industrial or plant engineering fields in general. Water supplies, sprinkler or flow irrigation, autoclave supplies and pressure elevations, heating and conditioning, any other use that involves the transfer of clean liquids in general.
Limits of use
- Liquid temperature up to 35 ° C (for domestic use according to EN 60335-2-41) - Max. liquid: 90 ° C (for other uses) - Ambient temperature up to 40 ° C - Manometric suction height up to 7 meters. - Continuous service
Motor
- 2-pole induction electric motor (n = 2850 min-1) - Class F insulation - IP 55 protection
Materials
- Pump body: Cast iron - Support: Cast iron - Impeller: Cast iron - Motor shaft: AISI 304 stainless steel - Mechanical seal: Ceramic / Graphite / NBRs
Limits of use
- Liquid temperature up to 35 ° C (for domestic use according to EN 60335-2-41) - Max. liquid: 90 ° C (for other uses) - Ambient temperature up to 40 ° C - Manometric suction height up to 7 meters. - Continuous service
Motor
- 2-pole induction electric motor (n = 2850 min-1) - Class F insulation - IP 55 protection
Materials
- Pump body: Cast iron - Support: Cast iron - Impeller: Cast iron - Motor shaft: AISI 304 stainless steel - Mechanical seal: Ceramic / Graphite / NBRs
|
• Brand: Wortex
• Model: CN 32 • Supply Voltage: 220 to 240V • Motor Power: 2.0 to 20.0 Hp / 1.5 to 15 kW • Max. Suction Depth: 7mt • Max Liquid °C: 35 / 90°C (Depends on type of seal used) • Max Ambient °C: 40°C • Maximum Head: 25.5 to 90.5 mt • Maximum Flow: 450 to 600 Lt/min • Pump body: Cast Iron • Motor bracket: Cast Iron • Impeller: Cast Iron • Pump shaft: Stainless Steel AISI 304 • Mechanical seal: Ceramic / Graphite / NBR • Pump Connections: DN50 (2") * DN32 (1¼") • Origin: Italy • Warranty: 24 months, parts & labor |

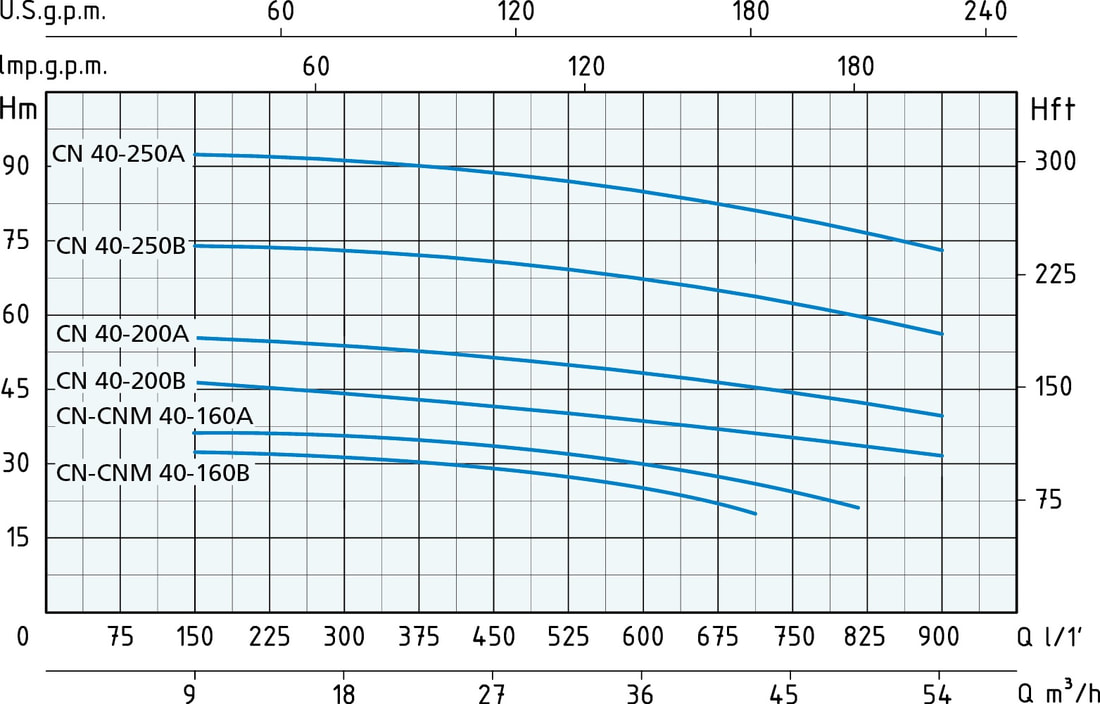

Wortex CN40
Centrifugal, monobloc and single-impeller electric pumps with pump body, connected to the motor by means of a support. With flanged suction and delivery ports (PN 10) and counterflanges of the threaded type. These machines are suitable for pumping clean water and other chemically and mechanically non-aggressive liquids; the possibility of installation in any position, with the exception of the one involving the suction mouth facing upwards. Suitable for the most varied needs in the civil, agricultural, industrial or plant engineering fields in general. Water supplies, sprinkler or flow irrigation, autoclave supplies and pressure elevations, heating and conditioning, any other use that involves the transfer of clean liquids in general.
Limits of use
- Liquid temperature up to 35 ° C (for domestic use according to EN 60335-2-41) - Max. liquid: 90 ° C (for other uses) - Ambient temperature up to 40 ° C - Manometric suction height up to 7 meters. - Continuous service
Motor
- 2-pole induction electric motor (n = 2850 min-1) - Class F insulation - IP 55 protection
Materials
- Pump body: Cast iron - Support: Cast iron - Impeller: Cast iron - Motor shaft: AISI 304 stainless steel - Mechanical seal: Ceramic / Graphite / NBR
Limits of use
- Liquid temperature up to 35 ° C (for domestic use according to EN 60335-2-41) - Max. liquid: 90 ° C (for other uses) - Ambient temperature up to 40 ° C - Manometric suction height up to 7 meters. - Continuous service
Motor
- 2-pole induction electric motor (n = 2850 min-1) - Class F insulation - IP 55 protection
Materials
- Pump body: Cast iron - Support: Cast iron - Impeller: Cast iron - Motor shaft: AISI 304 stainless steel - Mechanical seal: Ceramic / Graphite / NBR
|
• Brand: Wortex
• Model: CN 40 • Supply Voltage: 220 to 240V • Motor Power: 4.0 to 20.0 Hp / 3.0 to 15 kW • Max. Suction Depth: 7mt • Max Liquid °C: 35 / 90°C (Depends on type of seal used) • Max Ambient °C: 40°C • Maximum Head: 32.7 to 91.5 mt • Maximum Flow: 700 to 900 Lt/min • Pump body: Cast Iron • Motor bracket: Cast Iron • Impeller: Cast Iron • Pump shaft: Stainless Steel AISI 304 • Mechanical seal: Ceramic / Graphite / NBR • Pump Connections: DN65 (2½") * DN40 (1½") • Origin: Italy • Warranty: 24 months, parts & labor |

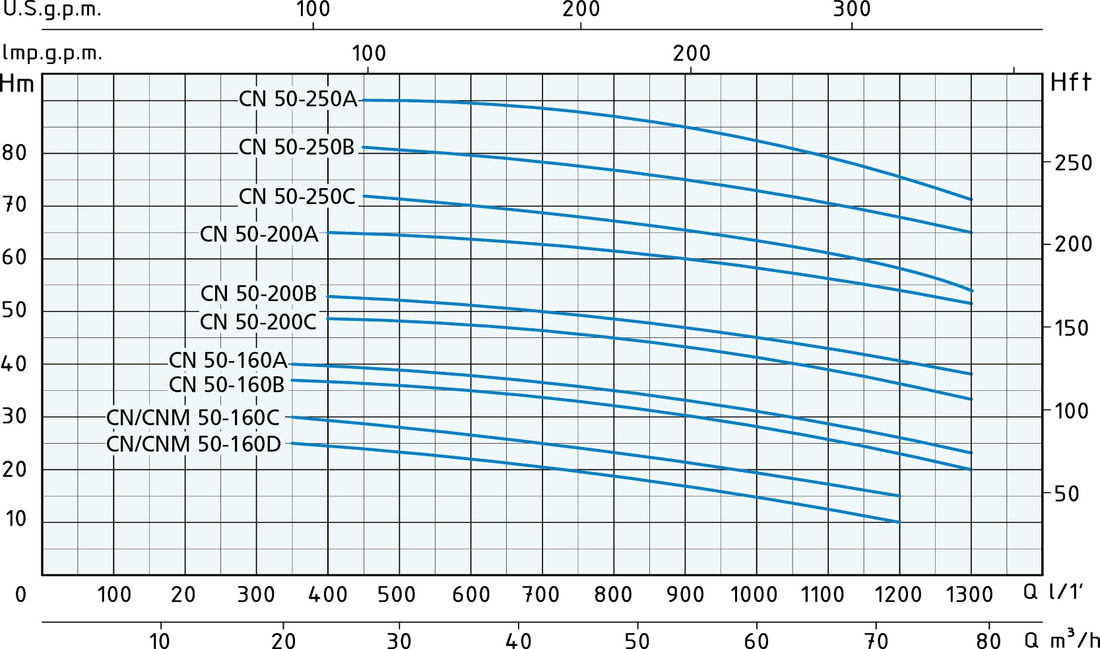

Wortex CN50
Centrifugal, monobloc and single-impeller electric pumps with pump body, connected to the motor by means of a support. With flanged suction and delivery ports (PN 10) and counterflanges of the threaded type. These machines are suitable for pumping clean water and other chemically and mechanically non-aggressive liquids; the possibility of installation in any position, with the exception of the one involving the suction mouth facing upwards. Suitable for the most varied needs in the civil, agricultural, industrial or plant engineering fields in general. Water supplies, sprinkler or flow irrigation, autoclave supplies and pressure elevations, heating and conditioning, any other use that involves the transfer of clean liquids in general.
Limits of use
- Liquid temperature up to 35 ° C (for domestic use according to EN 60335-2-41) - Max. liquid: 90 ° C (for other uses) - Ambient temperature up to 40 ° C - Manometric suction height up to 7 meters. - Continuous service
Motor
- 2-pole induction electric motor (n = 2850 min-1) - Class F insulation - IP 55 protection
Materials
- Pump body: Cast iron - Support: Cast iron - Impeller: Cast iron - Motor shaft: AISI 304 stainless steel - Mechanical seal: Ceramic / Graphite / NBR
Limits of use
- Liquid temperature up to 35 ° C (for domestic use according to EN 60335-2-41) - Max. liquid: 90 ° C (for other uses) - Ambient temperature up to 40 ° C - Manometric suction height up to 7 meters. - Continuous service
Motor
- 2-pole induction electric motor (n = 2850 min-1) - Class F insulation - IP 55 protection
Materials
- Pump body: Cast iron - Support: Cast iron - Impeller: Cast iron - Motor shaft: AISI 304 stainless steel - Mechanical seal: Ceramic / Graphite / NBR
|
• Brand: Wortex
• Model: CN 50 • Supply Voltage: 220 to 240V • Motor Power: 4.0 to 30.0 Hp / 3.0 to 22.5 kW • Max. Suction Depth: 7mt • Max Liquid °C: 35 / 90°C (Depends on type of seal used) • Max Ambient °C: 40°C • Maximum Head: 25 to 90 mt • Maximum Flow: 1,200 to 1,300 Lt/min • Pump body: Cast Iron • Motor bracket: Cast Iron • Impeller: Cast Iron • Pump shaft: Stainless Steel AISI 304 • Mechanical seal: Ceramic / Graphite / NBR • Pump Connections: DN65 (2½") * DN50 (2") • Origin: Italy • Warranty: 24 months, parts & labor |
