Macerator / Lifting Station - 230V / 12V

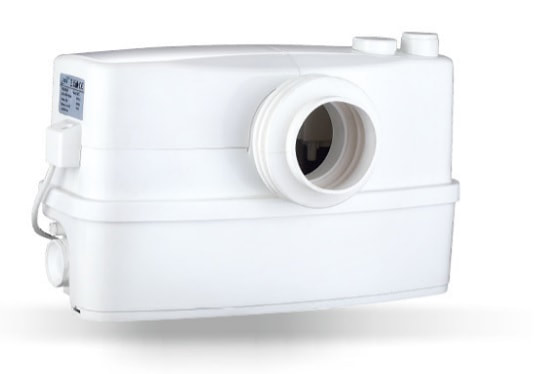

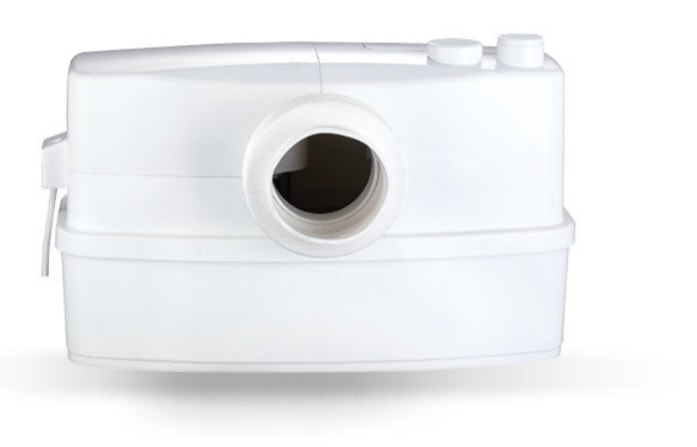

Wortex WC 600
|
Application:

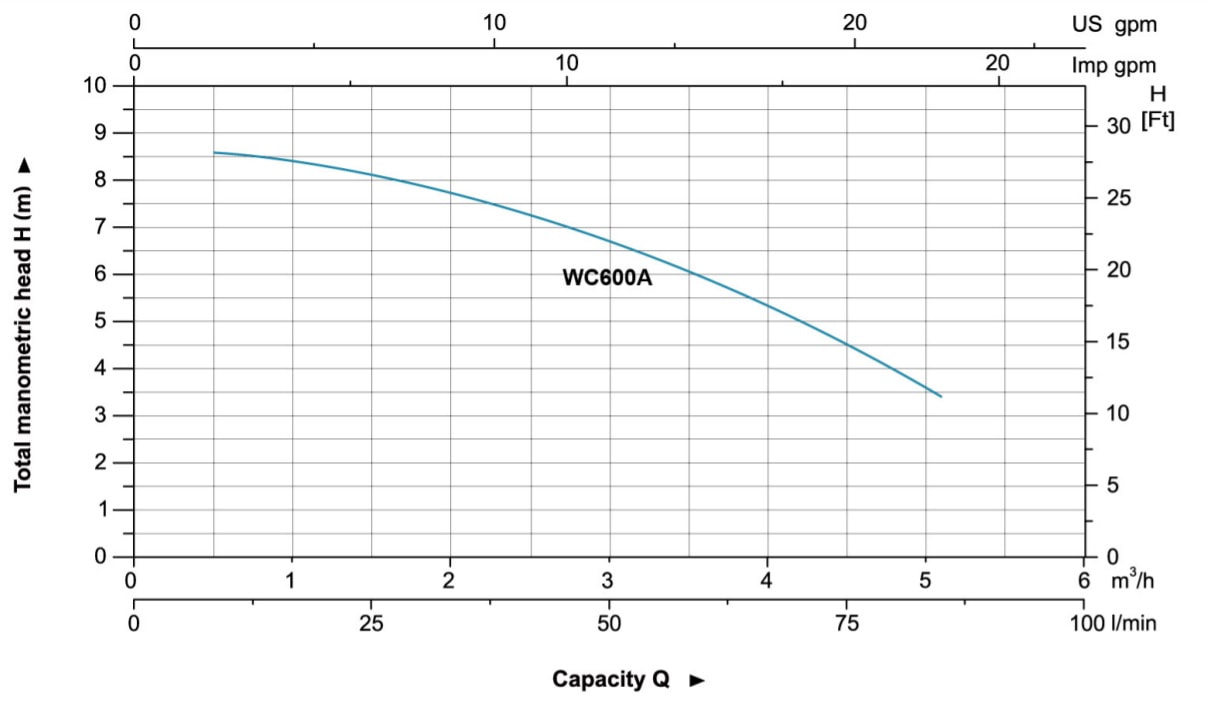

• This lifting station is suitable for pumping of wastewater off places in private dwellings and basements where wastewater cannot be led directly to the sewer by means of a natural downward slope. • It is typically used for • Renovation of offices or other commercial buildings • Wall mounted toilets in basements below sewer level • Washing machines & dish washers • Toilets, wash basins, bathtubs and cabinet showers in the bathrooms where the location may be remote from the main sewer pipe so that a natural slope cannot be established. Features: • Compact and slim for easy installation • Automatic start and stop • Top quality air switch and carbon filter from Germany • Circuit board with time delay function and low voltage protection • Low noise • New blade and support with better cutting performance • Suitable for sewage water containing toilet paper and faeces. Operating Conditions: • Maximum liquid temperature: 50 °C • Maximum ambient temperature: 35 °C • PH value: 4 - 10 • The pump must not be used for strong chemicals and solvents Technical Data: Motor Power: 600 Watts Maximum head: 7.5 mt Maximum flow: 85 Lt/min |
Sanisplit 3 Combi - 230 Volts
The One system to cover any application. It's stronger, more robust and produces more flow at greater head than competing units, making it the plumber's choice.The SaniSplit Muti-Purpose unit is a Macerator and Grey water pump in one. It comes complete with blanking caps and can be used for 1 basin only or complete bathroom with toilet.
Splits in two, a water-collection unit, permanently fixed to the WC bowl and a second removable unit, containing the macerator and pump.
With SaniSplit, you can create a bathroom WC or utility room anywhere, even well away from the sewage pipe.
Features and Benefits
Important: Bath and shower wastes must be 20cm above base of SaniSplit.
Splits in two, a water-collection unit, permanently fixed to the WC bowl and a second removable unit, containing the macerator and pump.
With SaniSplit, you can create a bathroom WC or utility room anywhere, even well away from the sewage pipe.
Features and Benefits
- Powerful 600 Watt Motor
- Very easy maintenance with no disconnecting of pipes. The motor and macerator simply lift away.
- Handles very challenging situations
- Higher temperatures including 100° Boiling Water
- Air Switch (not micro switch control) means the unit can operate prior to a grease trap
- FULLY AUTOMATIC: Macerates waste water automatically pumping it up to the sewer line
- One-way Valve: Built-in prevents the pumped water returning to the unit
- Maximum Discharges (or lesser combinations)
- Vertical: 10 metres
- Horizontal: 200 metres
- 40mm pipes
- Internal Plumbing Option: Means you don't see ugly discharge pipes
- Power supply: 230 Volt / 50Hz / Single Phase
- Complies with international standards EN12050-2, EN12050-3, EN12050-4
Important: Bath and shower wastes must be 20cm above base of SaniSplit.
Sanisplit 3 Combi - 12 Volts
The One system to cover any application. It's stronger, more robust and produces more flow at greater head than competing units, making it the plumber's choice.The SaniSplit Muti-Purpose unit is a Macerator and Grey water pump in one. It comes complete with blanking caps and can be used for 1 basin only or complete bathroom with toilet.
Splits in two, a water-collection unit, permanently fixed to the WC bowl and a second removable unit, containing the macerator and pump.
With SaniSplit, you can create a bathroom WC or utility room anywhere, even well away from the sewage pipe.
Features and Benefits
Important: Bath and shower wastes must be 25cm above base of SaniSplit.
Splits in two, a water-collection unit, permanently fixed to the WC bowl and a second removable unit, containing the macerator and pump.
With SaniSplit, you can create a bathroom WC or utility room anywhere, even well away from the sewage pipe.
Features and Benefits
- Powerful 600 Watt Motor
- Very easy maintenance with no disconnecting of pipes. The motor and macerator simply lift away.
- Handles very challenging situations
- Higher temperatures including 100° Boiling Water
- Air Switch (not micro switch control) means the unit can operate prior to a grease trap
- FULLY AUTOMATIC: Macerates waste water automatically pumping it up to the sewer line
- One-way Valve: Built-in prevents the pumped water returning to the unit
- Maximum Discharges (or lesser combinations)
- Vertical: 10 metres
- Horizontal: 200 metres
- 40mm pipes
- Internal Plumbing Option: Means you don't see ugly discharge pipes
- Power supply: 12 Volts
- Complies with international standards EN12050-2, EN12050-3, EN12050-4
Important: Bath and shower wastes must be 25cm above base of SaniSplit.
Easy dismantling:
|
