Pumps for Edible Liquids

---

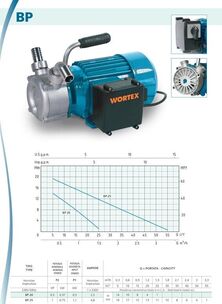

Wortex BP20

Stainless steel electropumps find their application in the transfer of water, wine, vinegar and juice. For the correct functioning of the pump, use clean water, or non-agressive liquids only, without sand or other solid impurities. The special selfpriming system allows priming up to 8 meters depth. The electric motor is fitted with a reverser which allows the pump to rotate in two directions. The bidirectional rotation obtained through the reverser makes transfer operations easier since the suction side can be used for delivery and the delivery side for suction.

OPERATING CONDITIONS
Liquid temperature up to 35°C (for home use    according to EN 60335-2-41)
Temperature max. liquid: 60°C (for other uses)
Ambient temperature up to 40°C
Total suction lift up to 8 mt.
Continuous duty

MOTOR
Two-Pole induction motor (n = 2850 min-1)
Insulation Class F
Protection IP 44

MATERIALS
Pump body:  Stainless steel AISI 304
Pump body cover:  Stainless steel AISI 304
Motor support:  Cast Iron
Impeller:  Brass
Connectors:  Brass
Shaft with rotor:  Stainless steel AISI 304
Double oil seal

• Brand:  Wortex
• Model:  BP 20
• Motor Power:   0.5 Hp / 0.37 kW
​• Max. Suction Depth:  8mt
• Max. Liquid °C:  35 / 60°C
• Max. Ambient °C:  40°C
• Maximum Head:  14 mt
• Maximum Flow:  25 lt/min
• Pump body:  Stainless Steel AISI 304
• Motor bracket:  Cast Iron
• Impeller:  Brass
• Pump shaft:  Stainless Steel AISI 304
• Mechanical seal:  No (Double Oil Seal)
• Pump Connections:  20 * 20 mm
• Origin:  Italy
• Warranty:  24 months, parts & labor
